| SKU |
m3 @15°C air m3 @15°C air
30 m³
40 m³
|
m3 @27°C air m3 @27°C air
60 m³
75 m³
|
KW @15°C air KW @15°C air
8,3
12,0
|
KW @27°C air KW @27°C air
12,0
16,0
|
|
|---|---|---|---|---|---|
| SKU34-180501 Spare Parts | m3 @15°C air30 m³ | m3 @27°C air60 m³ | KW @15°C air8,3 | KW @27°C air12,0 | |
| SKU34-180502 Spare Parts | m3 @15°C air40 m³ | m3 @27°C air75 m³ | KW @15°C air12,0 | KW @27°C air16,0 |

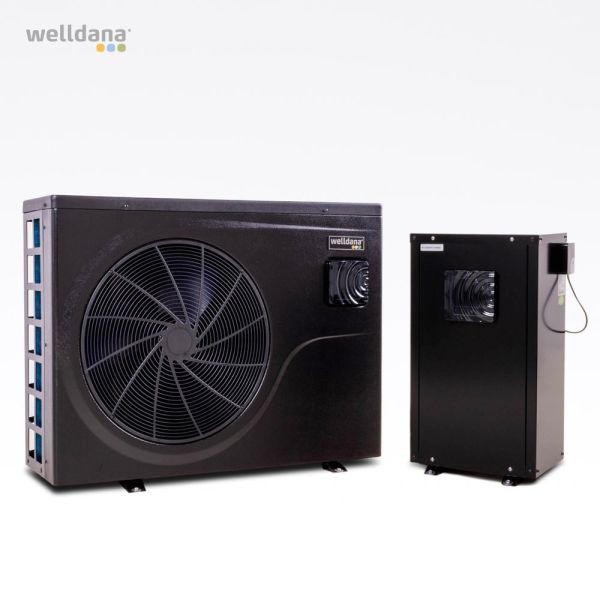

Split - Full Inverter
Amount of variants:
2
Welldana® Split heat pump for indoor pools used all year round. Operation down to - 15 ° C.
- Full inverter technology, with variable fan and compressor
- Intelligent control adjusts performance according to heating needs
- Fully automatic temperature control.
- COP 6.5 to 16.1 v / 27 ° C air temp., High power.
- COP 7.5 to 15.1 v / 27 ° C air temp., Low power.
- High efficient titanium heat exchanger - for chlorine and salt water.
- Recommended capacity requires pool thermal blanket. (If in doubt, go one size up)
- 3 year warranty
- 7 year warranty on compressor
- Up to 40 degrees C
- Bluetooth and WiFI included
- Full monitoring of operation (temperature development and operation)
- Dimension of copper pipe: 9.52mm (3/8 ”) inlet, 12.7mm (1/2”) outlet.
-
