| SKU |
m3 @15°C air m3 @15°C air
30 m³
40 m³
50 m³
65 m³
90 m³
|
m3 @27°C air m3 @27°C air
60 m³
75 m³
95 m³
120 m³
160 m³
|
KW @15°C air KW @15°C air
8,4
11,8
16,0
19,0
22,7
|
KW @27°C air KW @27°C air
13,0
17,0
21,0
25,0
30,0
|
|
|---|---|---|---|---|---|
| SKU34-180628 Spare Parts | m3 @15°C air30 m³ | m3 @27°C air60 m³ | KW @15°C air8,4 | KW @27°C air13,0 | |
| SKU34-180630 Spare Parts | m3 @15°C air40 m³ | m3 @27°C air75 m³ | KW @15°C air11,8 | KW @27°C air17,0 | |
| SKU34-180632 Spare Parts | m3 @15°C air50 m³ | m3 @27°C air95 m³ | KW @15°C air16,0 | KW @27°C air21,0 | |
| SKU34-180640 Spare Parts | m3 @15°C air65 m³ | m3 @27°C air120 m³ | KW @15°C air19,0 | KW @27°C air25,0 | |
| SKU34-180642 Spare Parts | m3 @15°C air90 m³ | m3 @27°C air160 m³ | KW @15°C air22,7 | KW @27°C air30,0 |
PMV Extended Performance
Amount of variants:
5

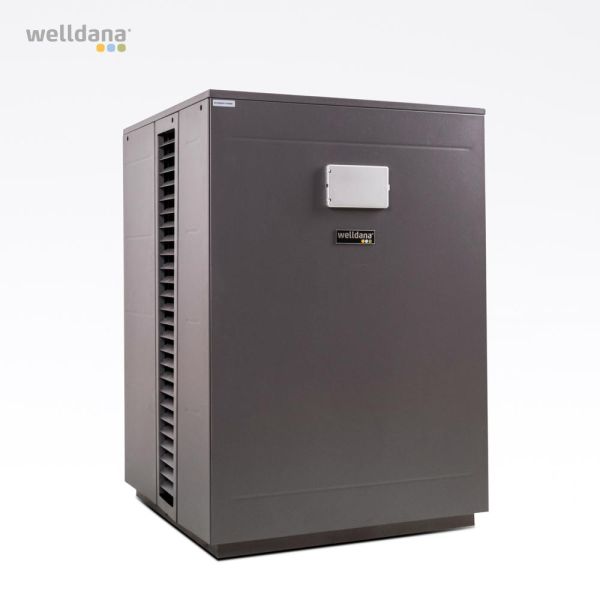

Welldana® PMV, a highly effective heat pump for pools, designed for air temp. down to -15°C. Especially suited for early startup and late shutdown of the pool
• Vertical model
• Double evaporater net, which provides better operation, at low air temperatures
• Blowout in sides and bottom. Gives better mounting possibilities and a lower noise level.
• Full inverter technology, with variable fan and compressor
• Intelligent control adjusts the performance according to heating needs
• Pool pump control - extremey quiet (down to 20 db v/ 10m)
• Fully automatic temperature control.
• COP 6,5 to 16,1 v/27°C air temp., high effect.
• COP 7,5 to 15,1 v/27°C air temp., low effect.
• Highly effective heat exchanger in titanium – for chlorine- and salt water.
• Recommended capacity demands pool thermo cover. (Having doubts about size, go one size up)
• 7 years waranty on compressor
• Up to 40 grader C
• Bluetooth and WiFI included
• Full monitoring of operation (temperature development and operation)
-
