Bilbao Filter Top og Sidemonteret

Amount of variants:

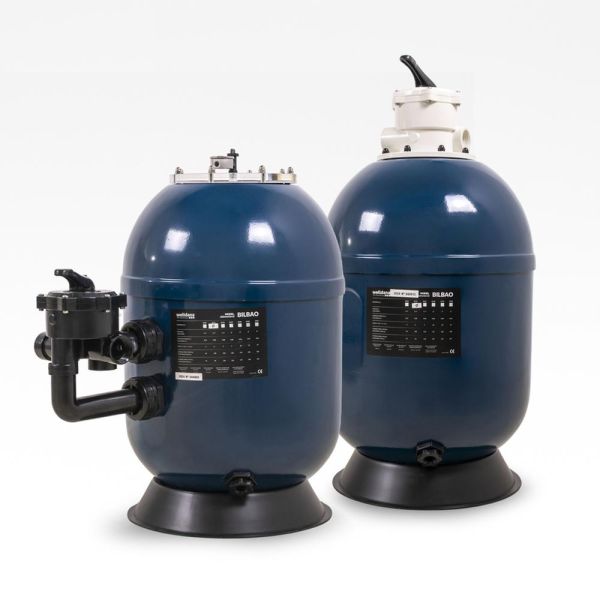

Bilbao Filter is a strong quality sand/AFM filter made of fiberglass laminated polyester

Top Mounted:

mounted with lateral arms in ABS
the top valve is bolted to the filter
available in sizes from Ø400mm to Ø680mm
incl. 6-way valve (400mm - 620mm are supplied with 1½" valve and 680mm is supplied with 2" valve)
colour: dark blue RAL 5020
max working pressure 2.5 bar / test pressure 3.75 bar

Side Mounted:

mounted with 8 lateral arms and diffusor in ABS
available in sizes from Ø400mm to Ø900mm
incl. 6-way valve (400mm - 620mm are supplied with 1½" valve and 680mm - 900mm are supplied with 2" valve)
supplied with black top lid
colour: dark blue RAL 5020
max working pressure 2.5 bar / test pressure 3.75 bar

Find the nearest reseller by searching for address, zip-code or city.

Find Product

SKU	Connection Connection 1½'' 2''	Diameter Diameter 400 mm 510 mm 620 mm 680 mm 750 mm 900 mm	Valve type Valve type Side mounted Top mounted
SKU45-450400 Spare Parts	Connection1½''	Diameter400 mm	Valve typeSide mounted
SKU45-450510 Spare Parts	Connection1½''	Diameter510 mm	Valve typeSide mounted
SKU45-450620 Spare Parts	Connection1½''	Diameter620 mm	Valve typeSide mounted
SKU45-450680 Spare Parts	Connection2''	Diameter680 mm	Valve typeSide mounted
SKU45-450750 Spare Parts	Connection2''	Diameter750 mm	Valve typeSide mounted
SKU45-450900 Spare Parts	Connection2''	Diameter900 mm	Valve typeSide mounted
SKU45-451400 Spare Parts	Connection1½''	Diameter400 mm	Valve typeTop mounted
SKU45-451510 Spare Parts	Connection1½''	Diameter510 mm	Valve typeTop mounted
SKU45-451620 Spare Parts	Connection1½''	Diameter620 mm	Valve typeTop mounted
SKU45-451680 Spare Parts	Connection2''	Diameter680 mm	Valve typeTop mounted
