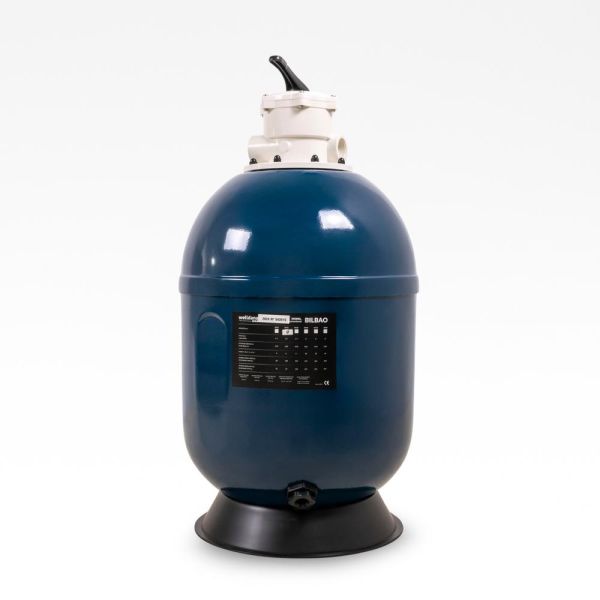

Tips for Bilbao filter Ø 620 TOP incl. 6 vejs ventil 1 1/2" Farve Blå
Specifications for Bilbao filter Ø 620 TOP incl. 6 vejs ventil 1 1/2" Farve Blå
Tips for Bilbao filter Ø 620 TOP incl. 6 vejs ventil 1 1/2" Farve Blå
| Warranty | 5 års garanti på tanken |
|---|---|
| Connection IN | 1 1/2" |
| Connection OUT | 1 1/2" |
| Unit weight | 23.5 kg |
| Height | 1070 mm |
| Filter capacity at 50m³/h/m² (backwash capacity) | 15 m³/h |
| Filter capacity at 30m³/h/m² | 9 m³/h |
| Filter area | 0.3 m² |
| Filter Diameter | 620mm |
| Sand | 125 kg |
| Gravel | 25 kg |
| AFM Grade 1 | 63 kg |
| AFM Grade 2 | 63 kg |
| Height filter bed | 500 mm |
| Connection | 1½'' |
| Valve type | Top mounted |
| Diameter | 620 mm |
