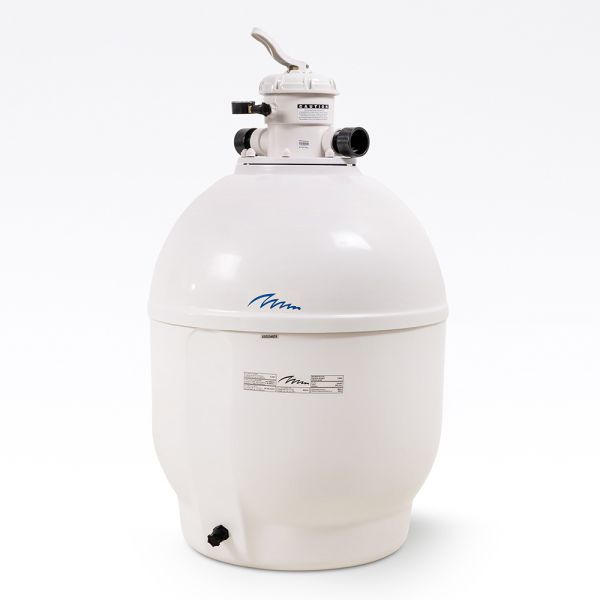

PPG Filter Top og Sidemonteret

Amount of variants:

The PPG Filter is a strong quality sand filter made of glass fiber reinforced laminated polyester.

Top Mounted:

Assembled with 8 pcs. lateral pipe and diffuser in ABS
The top-mounted multiport valve can be rotated 180° for easier pipe assembly.
From Ø520mm to 900mm.
Supplied without unions
Polyester-reinforced filter, made in white
Maximum working pressure 2.5 bar
Incl. Praher 6-way valve and vent inside the filter for venting the filter tubes.

Side Mounted:

Assembled with 8pcs. lateral pipe and diffuser in ABS
From Ø520mm to Ø900mm.
Supplied without unions
Polyester-reinforced filter, made in white
Equipped with transparent lid Ø200mm with vent and manometer.
Drain plug 1/4”.
Maximum working pressure 2.5 bar.
Incl. Praher 6-way valve and venting inside the filter to vent the filter tubes.

Find the nearest reseller by searching for address, zip-code or city.

Find Product

SKU	Connection Connection 1½'' 2''	Diameter Diameter 520 mm 640 mm 760 mm 900 mm	Valve type Valve type Side mounted Top mounted
SKU45-420520 Spare Parts	Connection1½''	Diameter520 mm	Valve typeSide mounted
SKU45-420640 Spare Parts	Connection1½''	Diameter640 mm	Valve typeSide mounted
SKU45-420760 Spare Parts	Connection2''	Diameter760 mm	Valve typeSide mounted
SKU45-420900 Spare Parts	Connection2''	Diameter900 mm	Valve typeSide mounted
SKU45-440520 Spare Parts	Connection1½''	Diameter520 mm	Valve typeTop mounted
SKU45-440640 Spare Parts	Connection1½''	Diameter640 mm	Valve typeTop mounted
SKU45-440760 Spare Parts	Connection2''	Diameter760 mm	Valve typeTop mounted
SKU45-440900 Spare Parts	Connection2''	Diameter900 mm	Valve typeTop mounted
