| SKU |
m3 @15°C air m3 @15°C air
25 m³
30 m³
40 m³
65 m³
90 m³
130 m³
50 m³
|
m3 @27°C air m3 @27°C air
45 m³
55 m³
75 m³
120 m³
160 m³
260 m³
95 m³
|
KW @15°C air KW @15°C air
7,0
8,7
11,5
18,0
24,5
40,0
14,0
|
KW @27°C air KW @27°C air
10,5
13,0
17,5
27,5
35,8
60,0
20,5
|
|
|---|---|---|---|---|---|
| SKU34-180650 Spare Parts | m3 @15°C air25 m³ | m3 @27°C air45 m³ | KW @15°C air7,0 | KW @27°C air10,5 | |
| SKU34-180652 Spare Parts | m3 @15°C air30 m³ | m3 @27°C air55 m³ | KW @15°C air8,7 | KW @27°C air13,0 | |
| SKU34-180653 Spare Parts | m3 @15°C air40 m³ | m3 @27°C air75 m³ | KW @15°C air11,5 | KW @27°C air17,5 | |
| SKU34-180651 Spare Parts | m3 @15°C air50 m³ | m3 @27°C air95 m³ | KW @15°C air14,0 | KW @27°C air20,5 | |
| SKU34-180654 Spare Parts | m3 @15°C air65 m³ | m3 @27°C air120 m³ | KW @15°C air18,0 | KW @27°C air27,5 | |
| SKU34-180657 Spare Parts | m3 @15°C air90 m³ | m3 @27°C air160 m³ | KW @15°C air24,5 | KW @27°C air35,8 | |
| SKU34-180658 Spare Parts | m3 @15°C air130 m³ | m3 @27°C air260 m³ | KW @15°C air40,0 | KW @27°C air60,0 |

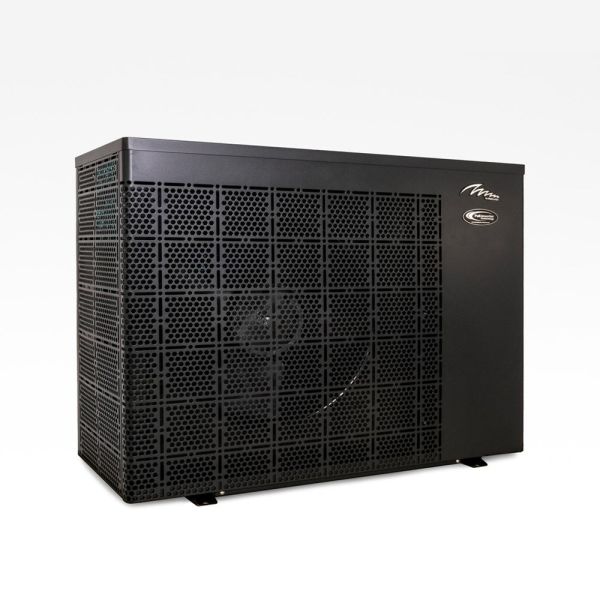

Inverter Plus Poolvarmepumper
Amount of variants:
7
Welldana® Inverter Plus, is a very efficient heat pump, 65% larger COP than ON/OFF models and designed for air temp. down to -7°C. The heat pump is primarily intended for heating pools in the summer.
Winter operation: If the heat pump is to be used during the winter months in the Nordic climate, the factory-set defrosting parameters must be adjusted. Then contact the dealer. The heat pump's operating range is for air temperatures between -7 and 43°C and pool water temperatures between 9 and 40°C. Note that when the pool water temperature falls below 4°C, the heat pump goes into frost-protected mode and stops until the temperature is 8°C or above again. . We recommend raising the heat pump 30cm above the ground to avoid the build-up of ice from defrosted water. The effect of a heat pump decreases in line with the outside temperature. Therefore, it is a good idea to install an electric heater on the pool system as a backup if the heat pump cannot keep up at low temperatures.
- Inverter technology, soft starter
- Pool pump control - extremely quiet
- High insulated reinforced aluminium cabinet
- Recommended for coastal areas (never rusts).
- 9 sensors - Fully automatic temperature control.
- High power during heating - low power during maintenance.
- COP6,5 to 16 v/26°C air temp., high power.
- Highly efficient heat exchanger in titanium - for chlorine and salt water.
- Recommended capacity requires pool thermal blanket (If in doubt, go up a size)
- 7 year warranty on compressor (Twin rotary Mitsubishi)
- Up to 40°C
- The AquaX models have WI-FI included - ready for use
- R32 refrigerant
DOWNLOAD APP
-
Documents
-
Video
-
Tips
×
Bemærk: Til det Nordiske klima anbefaler vi at tage udgangspunkt i lufttemperatur på 15°C tabellen. Er du i tvivl, gå altid en størrelse op.
