| SKU |
Item Item
Assembly set for Lounges
Set for Tubular motor for liner and concrete
Mounting Bracket corner cover - motor left
Mounting Bracket corner cover - motor right
Wall duct f. fiberglass and vinylester pools
Embedded parts f. concrete masonry and polystyrene pools
Pre-assembly parts f. concrete and masonry pools
Cable tray for concrete and masonry pools
Suspension plates for all pool types
|
|
|---|---|---|
| SKU32-900030 | ItemWall duct f. fiberglass and vinylester pools | |
| SKU32-900035 | ItemEmbedded parts f. concrete masonry and polystyrene pools | |
| SKU32-900040 | ItemPre-assembly parts f. concrete and masonry pools | |
| SKU32-900045 | ItemCable tray for concrete and masonry pools | |
| SKU32-900050 | ItemSuspension plates for all pool types | |
| SKU32-900117 | ItemSet for Tubular motor for liner and concrete | |
| SKU32-900118 | ItemMounting Bracket corner cover - motor left | |
| SKU32-900119 | ItemMounting Bracket corner cover - motor right | |
| SKU32-900120 | ItemAssembly set for Lounges |
Aquadeck indstøbnings
Amount of variants:
9

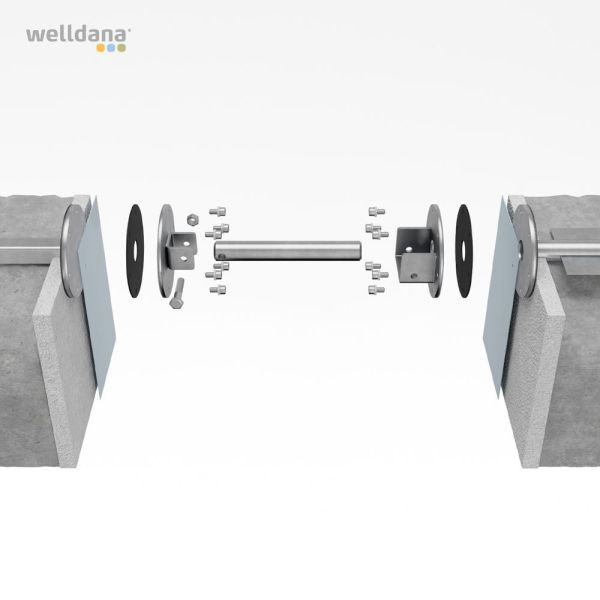

Wall penetration for concrete and masonry pools: To be used with pools with previously finished walls. Wall penetrations require drilling through the wall. This can still be done even if the foil/tiles is/are already in place. Suitable for all types of pools.
Embedded parts for concrete, masonry and polystyrene pools: To be used in new-build swimming pools where the embedded parts can be integrated into the concrete. Foil/tiles to be installed afterwards.
Cable duct for concrete and masonry pools: For use with existing pools already finished with foil/tiles. Drilling into the wall is not necessary. The motor cable is routed in a stainless steel cable duct.
Suspension plates for all types of pools: For use with existing pools already finished with foil/tiles. Drilling into the wall is not necessary. The stainless steel suspension plates are installed between the top of the pool wall and the coping stones. For this purpose, concrete must be provided at the location of the suspension plates. The motor cable is routed in an integrated stainless steel cable duct on the suspension plate.
-
