Aquadeck cover system
SKU
D32-900090

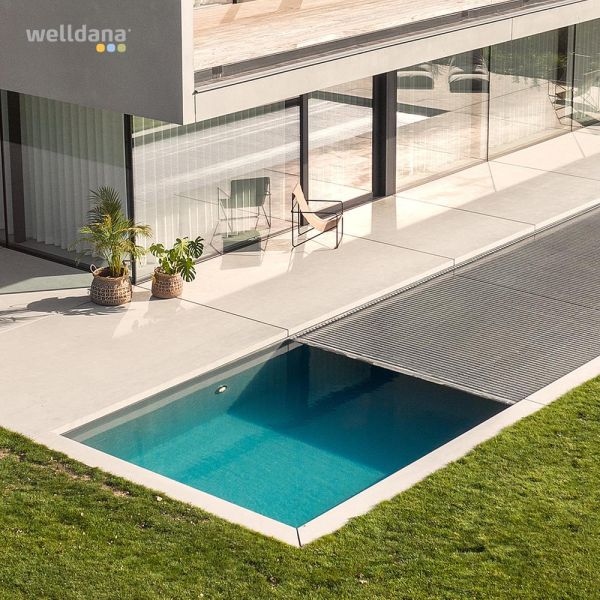

Here you get the absolute best, where the focus is on design, quality and durability. The smallest engine is, for example, a whopping 250 newton metres. It ensures stable driving and a surplus of power in the engine, which provides long durability at the heart of the system. The slats withstand up to 120 degrees, so it will last even if they lie directly in the sun. Instead, use the models with a black back to get cheap heat in the pool. A good and environmentally friendly heating method.
The slats are available in two different materials, PVC and polycarbonate. Both are available in different colors, which can be seen in the pictures to the left.
The motor system allows for installation on the edge of the pool or built into the pool. If the latter solution is chosen, there are various options for assembly. Take a professional with you for advice, and you are sure of the best solution for your particular pool.
Below you will find an overview of the things to consider before you decide.
×
Tips for Aquadeck cover system
-
Documents
-
Video
-
Tips
-
Spare Parts
-
Manuals
-
Specifications
-
Tips
×
Tips for Aquadeck cover system
×
Step 1: Technical PDF
1. Mounting possibilities
Open pdf
2. Fittings for pipes
Open pdf
3. Slats
Open pdf
4. Construction done
Open pdf
Step 2: Visual descriptions
Top or under water mounting?
Below we summarize the six mounting options for you Aquadeck-cover.

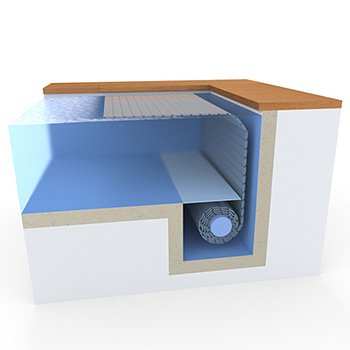

Immersion in the pool
A recess is constructed at the end of the pool. The partition is slightly lower than the walls of the pool. It shields the cover but shares the same water quality. The construction allows you to take advantage of the entire size of the pool
A recess is constructed at the end of the pool. The partition is slightly lower than the walls of the pool. It shields the cover but shares the same water quality. The construction allows you to take advantage of the entire size of the pool

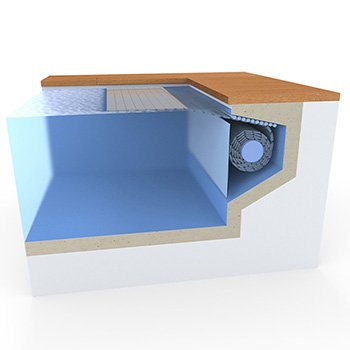

In the wall / bottom
Here the cover is hidden in the wall. The drop in the wall can be separated from the rest of the pool with a protective plate. This plate can be mounted with the same lining color as the rest of the pool. The construction allows you to take advantage of the entire size of the pool.

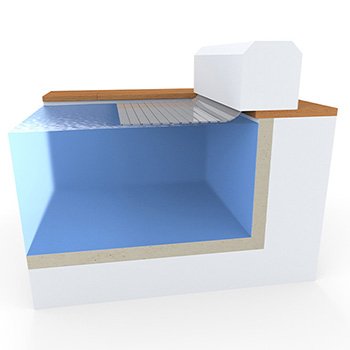

Above ground
The automatic cover is placed above pool level just behind the pool. It's the simplest way to build an automatic cover. This method allows you to take advantage of the full length of the pool and create a bench on the side of the pool

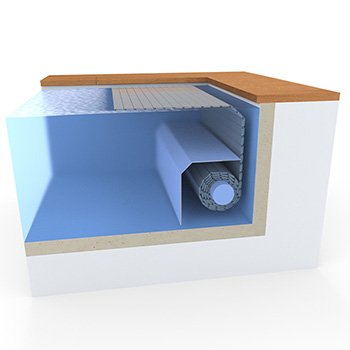

At the bottom
The cover is built into the bottom of the pool. For safety and aesthetic reasons, we cover the roll with a corner cover.
In the pool
The cover is simply mounted in the pool. This option is the easiest construction, but the cover is visible.

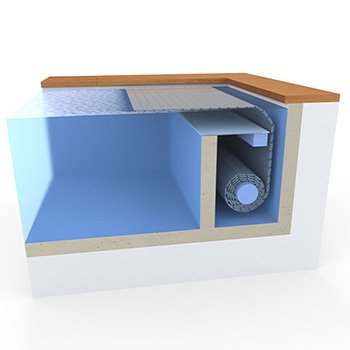

Underwater base over the cover
The construction for the cover is mounted at the bottom of the pool. Special curb stones are supported by the partition wall and a steel beam mounted above the cover, form a bench where you can play or relax.
Prefabricated plates for corner covering
Complete mounting bracket for wall, mounted on an SS plate. Ideal when the cover is mounted on the bottom of the pool. Support has been prepared for the final construction (underwater bench).
Prefabricated elements
Wall mounted with separate mounting flange. A mounting template is used when the shell is finished. The liner is then mounted before mounting the separate mounting flange. Can also be used for existing pools. Cast-in elementsMounting bracket for wall. The installation is carried out while the pool is being built. Additional wall flanges have been prepared for wall mounting.
Wall penetration
Mounting bracket for wall. Mounted on the pool edge when the pool is finished. Can be used on existing pools.
Hanging plates 500 mm
Fully mounted wall panels with mounting brackets, 500 mm high to lay on top of the wall under the curbs. The cable is routed to the top
Cable entry
Mounting bracket without wall bushing with an SS pre-shaped plate for guiding the motor cable. The installation is carried out when the pool is finished. Can be used on existing pools.
PVC or Polycarbonate?

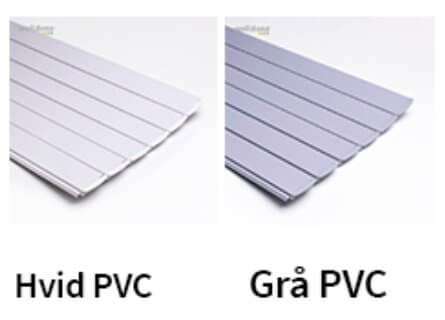

PVC - For high quality slats. The slats for your pool cover are available in a wide range of colors. There is a matching pool cover for every desire, style and ambiance. The PVC slats are available in white, gray, transparent and as sun slats.

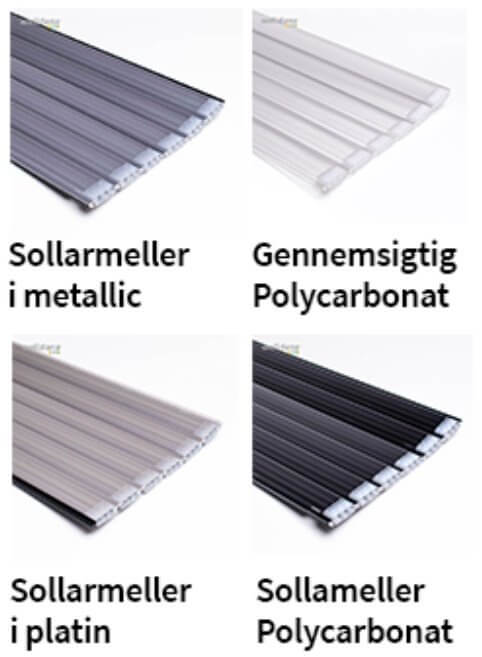

POLYCARBONATE - For greater strength and longer service life, Slats in polycarbonate have a greater impact strength and a longer service life. The polycarbonate slats are available as sun slats, transparent slats, metallic sun slats and platinum sun slats.
Aqua ECB
Electronic operation Including transformer 230 / 24V
Built-in key switch
Built-in key switch incl. extra key
Aqua motor pipe PVC
Power supply 24V - direct current10 meter cable
Power 250 Nm
3.5 rpm Programmable electronic stop
